Tough, refined, and ready for anything – the Gen 3 Fantail 270 Awning is designed in New Zealand and built to handle serious off-road conditions. With 11.5m² of fully waterproof, free-standing coverage, integrated LED lighting, and robust truss arms, this awning delivers effortless shade and shelter—fast.
• 3-year warranty – Designed in NZ for long-term outdoor use
• Designed specifically for New Zealand conditions
• 11.5m² of fully free-standing coverage (2.5m stowed length)
• Quick 30-second deployment
• Fold-out design – setup in under 60 seconds
• Fully waterproof – PU coated, fully seam sealed
• 320gsm grey ripstop polyester canvas (not polycotton and not prone to mould or mildew)
• UV 50+ rated for sun protection
• 3x built-in LED lights – touch dimmable with white/amber/both light modes
• Power bank pouch with USB and cig plug input
• Truss-style aluminium arms – custom-engineered extrusions for superior strength
• 4mm stainless steel hinge system with backing plates
• Stronger, thicker aluminium backing board
• 2x pop-up support poles to improve roof tension and water run-off
• 3x rain valley tie points to manage heavy rain
• Fully aluminium rope ratchets – no plastic components
• Strong, adjustable aluminium pole legs with thicker tubing for a secure twist-lock hold
• Free-standing in winds up to 30kph
• Velcro travel straps for secure closure
• Heavy-duty 1000D PVC travel cover for off-road protection
• Partially assembled in New Zealand – quality checked before dispatch
• Spare parts available for long-term product support
The Gen 3 Fantail 270 Awning is engineered to go the distance. Featuring a full 2.5m stowed length and 11.5m² of coverage, this awning is free-standing, fast to deploy, and built with real-world adventure in mind.
A full structural redesign brings stronger, smarter hardware to this latest model. From custom truss-style arms to a 4mm stainless steel hinge system, every element is designed to withstand demanding conditions. The grey 320gsm ripstop polyester canvas is PU coated, UV 50+ rated, and fully seam sealed—delivering guaranteed waterproofing and long-term durability without the downsides of polycotton.
Three built-in LED lights (white/amber selectable) are touch-dimmable for full control, helping reduce bugs and manage power consumption on the go. The included power pouch connects to a power bank, aux battery, or starter battery via USB and cig plug input.
Rainy days? No problem. Two pop-up support poles and three rain valley tie points improve water run-off during heavy weather. The upgraded rope ratchets are now fully aluminium (no plastic), while the pole legs feature thicker tube walls for improved rigidity. A 1000D travel cover and NZ-based assembly and quality control round out a truly premium build.
Whether you're chasing sun, shelter, or all-season setup reliability, this is your awning.

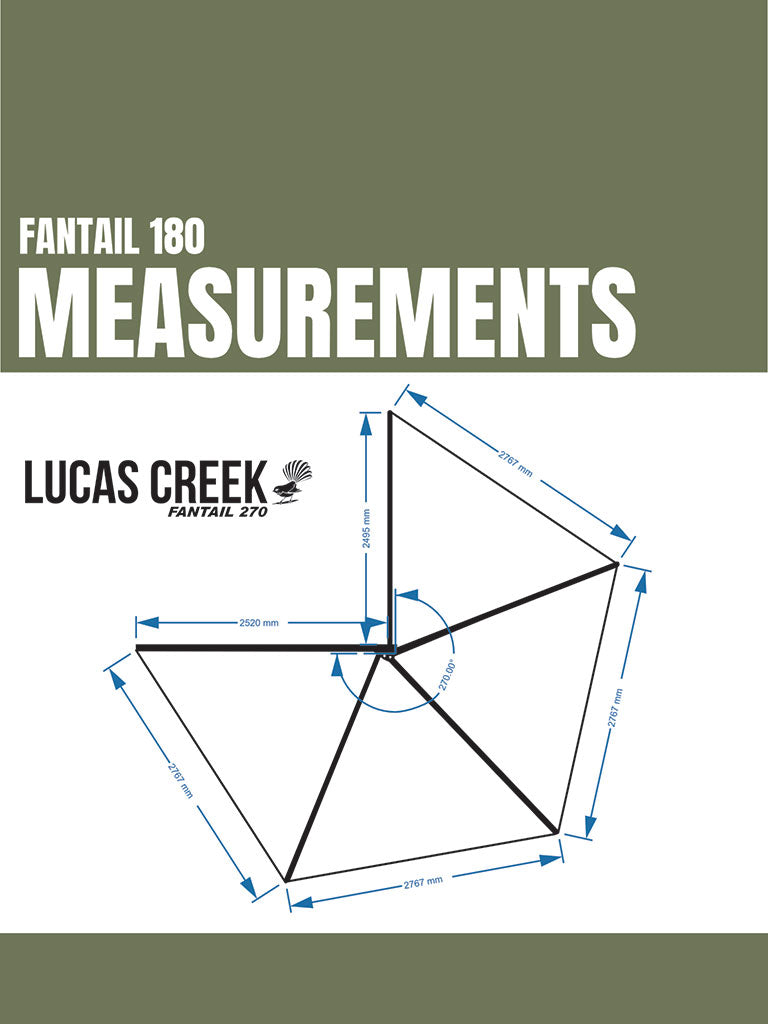

• Coverage: 11.5m²
• Awning Length (stowed): 2.5m
• Stowed Dimensions: 2500mm (L) x 200mm (H) x 160mm (W)
• Weight: 29kg (including brackets)
• Canvas: 320gsm ripstop polyester, PU coated
• Waterproof Rating: 3000mm
• UV Rating 50+
• Travel Cover: 1000D PVC
• LED Lighting: 3x integrated dimmable lights (white/amber/both)
• Pole Material: Thicker-walled adjustable aluminium
• Arm Construction: Custom aluminium truss-style arms
• Wind Resistance: Free-standing up to 30kph
• Mounting: Short brackets included; long brackets available
Designed in new zealand
