Gen 4 Soft Shell Rooftop Tent - Gunmetal Grey

The Gen 4 Gunmetal Grey is our feature-packed fold-out rooftop tent for campers wanting generous interior space in a clean, understated setup.

With a 2.4m x 1.4m sleeping area and 70mm high-density foam mattress, it offers the space of a traditional soft-shell rooftop tent with a range of integrated features designed to make life at camp simpler. The Gunmetal Grey finish pairs particularly well with modern 4WD, ute and touring builds without dominating the look of the vehicle.

Inside, the Gen 4 includes dimmable multi-mode lighting, 12V power with USB, USB-C and cigarette-style sockets, large storage and shoe pockets and a heater duct for colder trips. Exterior under-base lighting provides useful illumination around the ladder and campsite after dark.

Built Around Practical Touring

The Gen 4 uses a high-strength thermoplastic honeycomb base designed to flex under load while providing insulation between the sleeping platform and the vehicle roof.

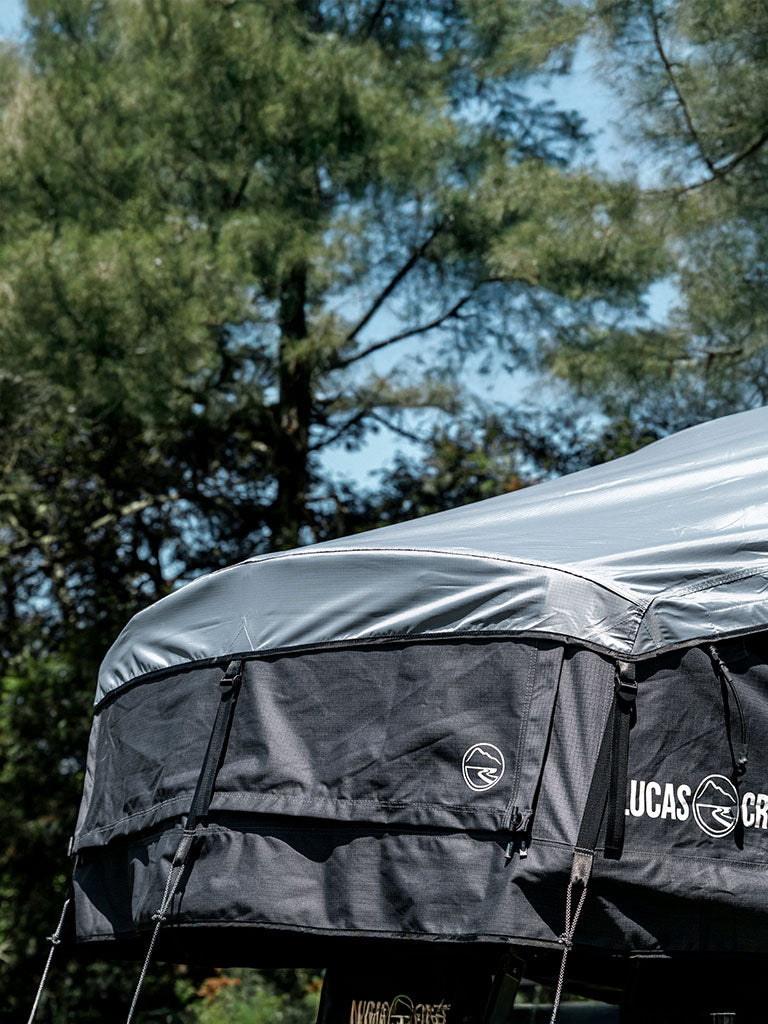

A curved roof profile helps manage water during wet weather, while the Lucas Creek anti-flap rain-fly system is designed to reduce fabric movement and noise when conditions become windy.

Panoramic windows provide wide views and ventilation, while the ladder-cover extension includes an additional window to bring more light and airflow into the entrance area. The cam-lock closing system also makes pack-down easier when travelling regularly between campsites.

For campers who want more usable space at ground level, an optional annex can be fitted beneath the fold-out section to create a protected area for gear, changing or relaxing.

Designed and refined in New Zealand and backed by a five-year warranty, the Gunmetal Grey Gen 4 is suited to touring vehicles, couples and families looking for a spacious soft-shell rooftop tent with integrated comfort and electrical features.

• Designed and refined in New Zealand for Kiwi conditions
• 5-year warranty
• Curved anti-pooling roof design
• Exclusive Lucas Creek anti-flap rain-fly system
• Thermoplastic honeycomb base – ultra strong (rated to 1 tonne) and flexes under load
• Superior insulation – warmer in winter, cooler in summer, and reduced condensation
• 75mm high-density foam mattress (2.4m x 1.4m) with waterproof sides and underside
• 25mm lined, fabric-covered aluminium structural poles – stronger and dew-resistant
• Huge panoramic side windows (1.6m x 60cm) with roll-up awnings
• Large ladder cover window
• Easy 5-minute setup and pack down
• Quiet in wind – anti-flap system + fabric tension wings
• Folding ladder cover pole for added stability and weather protection
• Ladder shelter built into the design
• Travel cover with with HD seam sealer and velcro closure (no zips to jam or break)
• Roll-up travel cover for easy access to vehicle rear
• Gear sling and large shoe pockets
• NZ-made aircraft-grade aluminium guy ropes and slides
• Monsoon pole support for heavy rain or wind
• Stainless steel hardware throughout

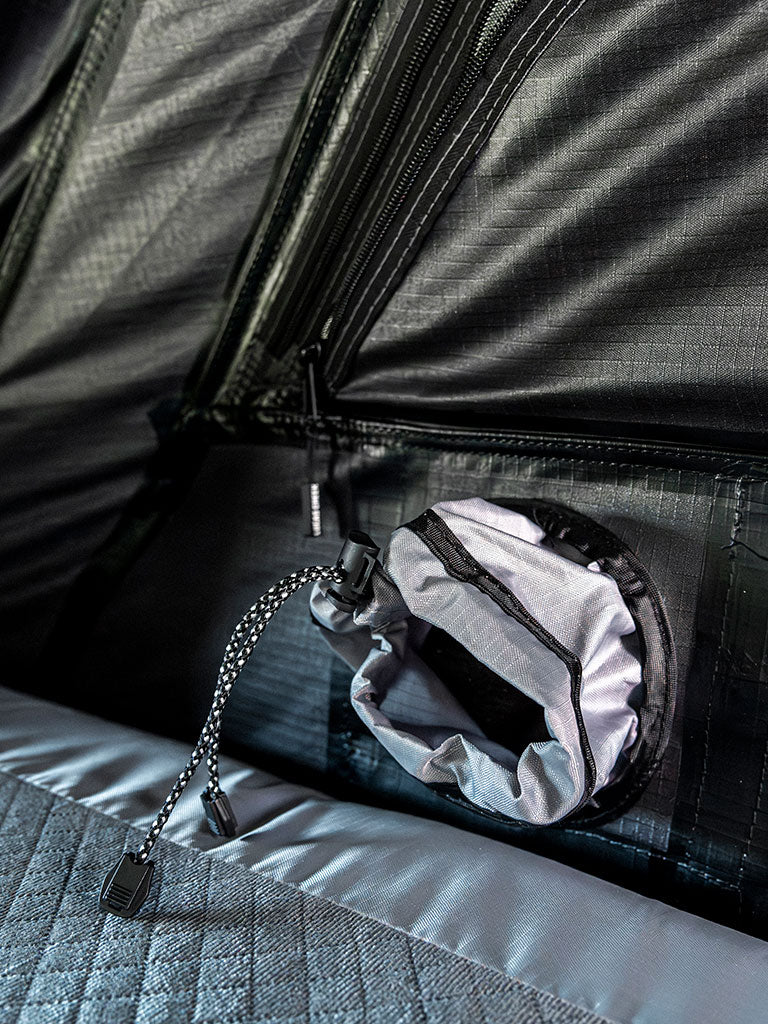

• Heater duct
• Internal and External LED lighting
• 12v internal power
• External Anderson 12v input

The All New Gen 4 Lucas Creek Soft shell Rooftop Tent in Natural Green is the result of 9 years of refinement and field testing across New Zealand’s most diverse landscapes. Designed by outdoor enthusiasts, for outdoor enthusiasts, this Gen 4 model balances strength, comfort, quietness, and weather resistance in one rugged, all-season package.
We have added LED dimmable strip lights internally and externally and convenient internal 12v power to charge your devices and power accessories and a heater duct for winter camping.

At the core of the tent is our ultra-durable thermoplastic honeycomb base—a material far superior to aluminium honeycomb or sandwich panel bases. It's lightweight, flexible under load, and capable of handling over 1 tonne of pressure without denting or damage. Better yet, it acts as a natural insulator, helping reduce condensation while keeping you warmer in winter and cooler in summer.

Set up and pack down takes minutes thanks to a simple fold-out design and the inclusion of a permanent folding ladder cover pole, which supports the tent structure during poor weather and makes assembly even faster. The tent is built with 380gsm ripstop polycotton canvas and a 420D PU-coated rainfly, finished with our exclusive anti-flap rain-fly system. Unlike standard rooftop tents, this system uses velcro anchors and reinforced fly wings to reduce wind flapping and improve privacy. You can also use 2 or 4 spring poles to tension the fly depending on your conditions.

Panoramic side windows (1.6m x 60cm) provide epic views and airflow, eliminating the need for leaky sunroofs or skylights. Roll-up side awnings give you the flexibility to let in the breeze or enjoy shelter and privacy when needed. An additional ladder cover window has been added for extra ventilation and light.

Inside, you’ll find a 70mm high-density foam mattress with a waterproof underside and cover, along with thoughtful additions like a gear sling, 2 x large shoe pockets, and climbing safety straps. The internal frame features 25mm aluminium poles, lined and fabric-wrapped to prevent dew build-up and internal wear.

For harsh conditions, the curved roof and ladder cover pole add additional weather resistance, while the heavy-duty 1000D PVC travel cover features HD seam seals, velcro closure, easy removal or roll up - no zips to jam or fail. We've also included a monsoon pole, and stainless steel hardware for complete reliability.

The Lucas Creek Rooftop Tent is quiet in the wind, comfortable in the cold, and strong enough to go wherever you do. Whether you’re heading off-road or into the unknown, this tent has your back - season after season.

• Travel cover 1000D Heavy duty PVC
• Tent Body 380GSM ripstop poly cotton canvas
• Tent Fly 420D Polyester canvas
• Thermoplastic honeycomb base
• Marine grade Stainless steel hardware
• Dimensions Closed: 141cm W x 120cm L x 40cm H
• Dimensions Open: 141cm W x 240cm L x 125cm H
• Load rating 500kg
• Weight 59kg

• Monsoon brace pole
• 2 x X-Large Shoe Pockets
• Bottle Opener

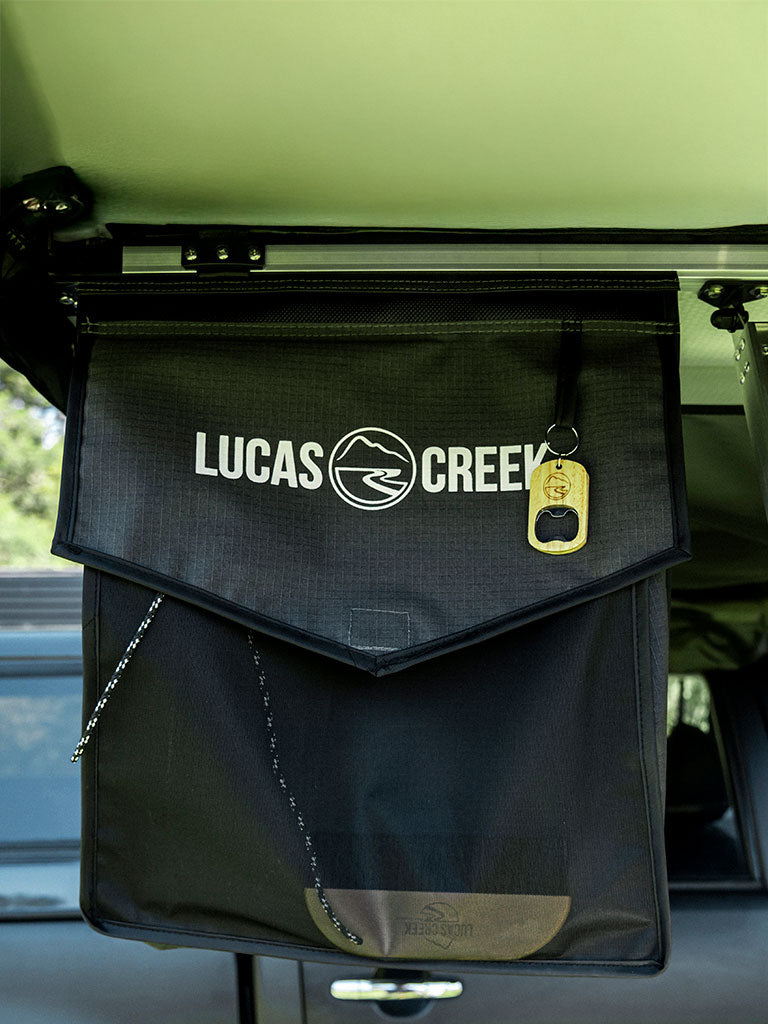

• Mesh Adjustable Gear Sling
• Heavy-duty 900D PVC travel cover (velcro sealed, roll-up access)
• Folding ladder cover pole
• Ladder shelter
• Sand brush
• Peg mallet
• Gear sling
• Large shoe pockets
• 8 x spring poles
• Guy ropes with aircraft-grade aluminium slides
• Stainless steel mounting hardware
• Climbing safety straps
• Internal LED dimmable Multi colour light
• External LED dimmable Multi colour light

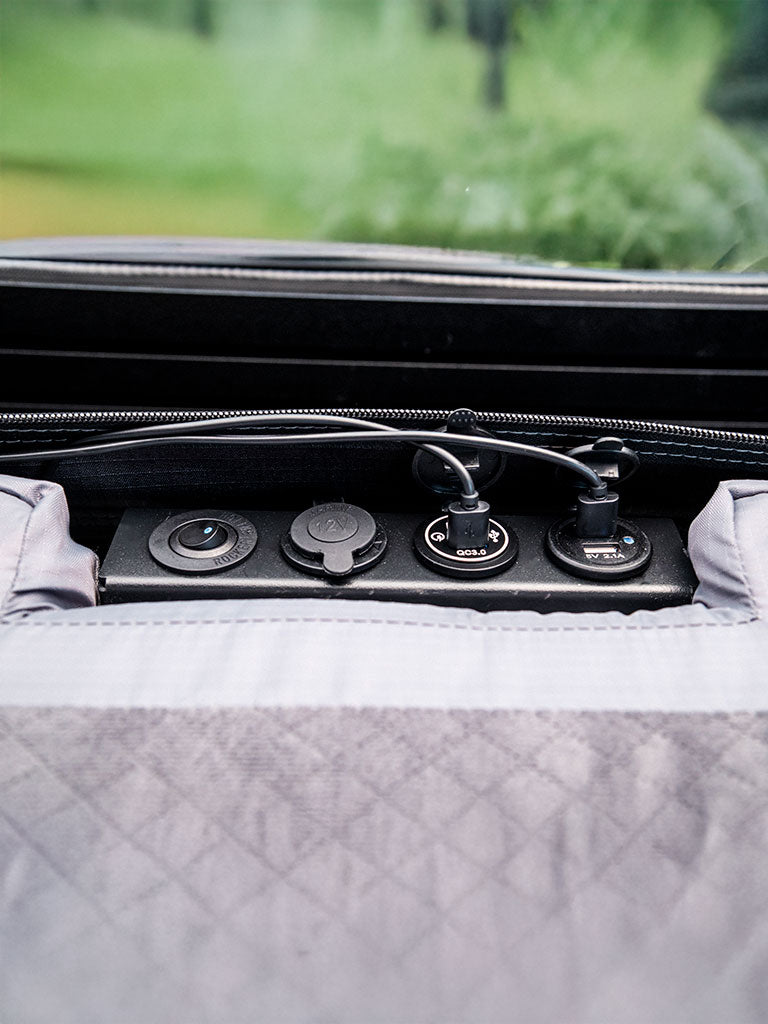

• Internal 12v Power with Switch -USB - USBC - Cig Socket
• External Anderson plug 12v Input.
• Heater Duct
• Instruction manual

• Large Annex Room
• Insulation Layer
• Tent fitting service (from $99)
