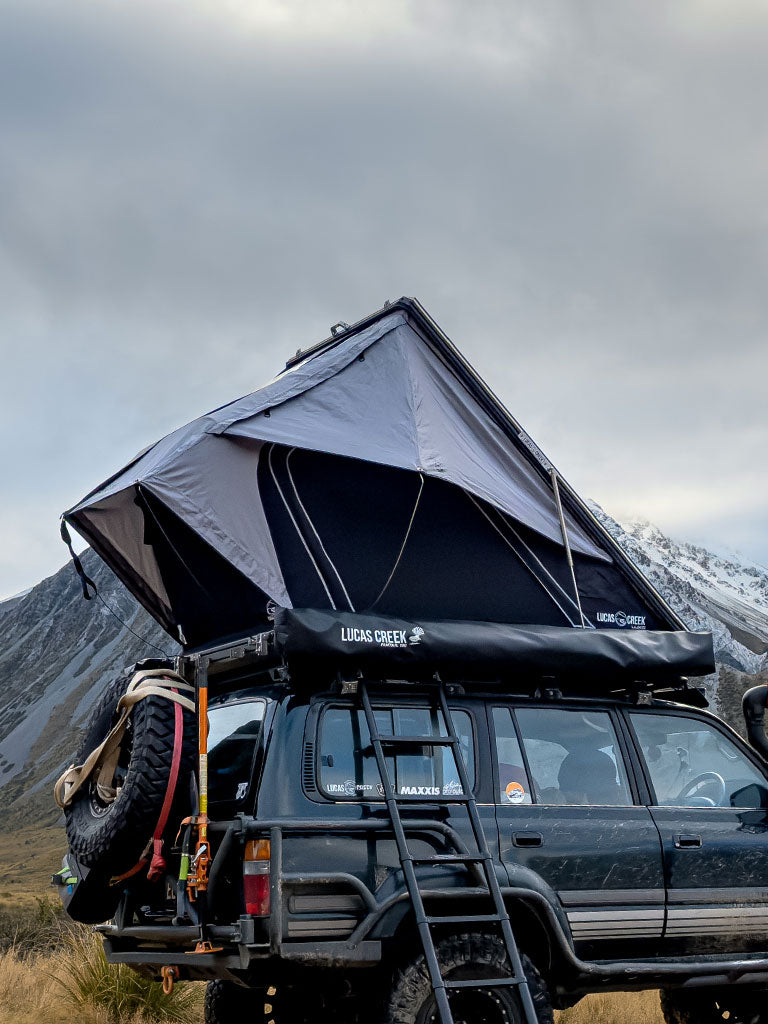

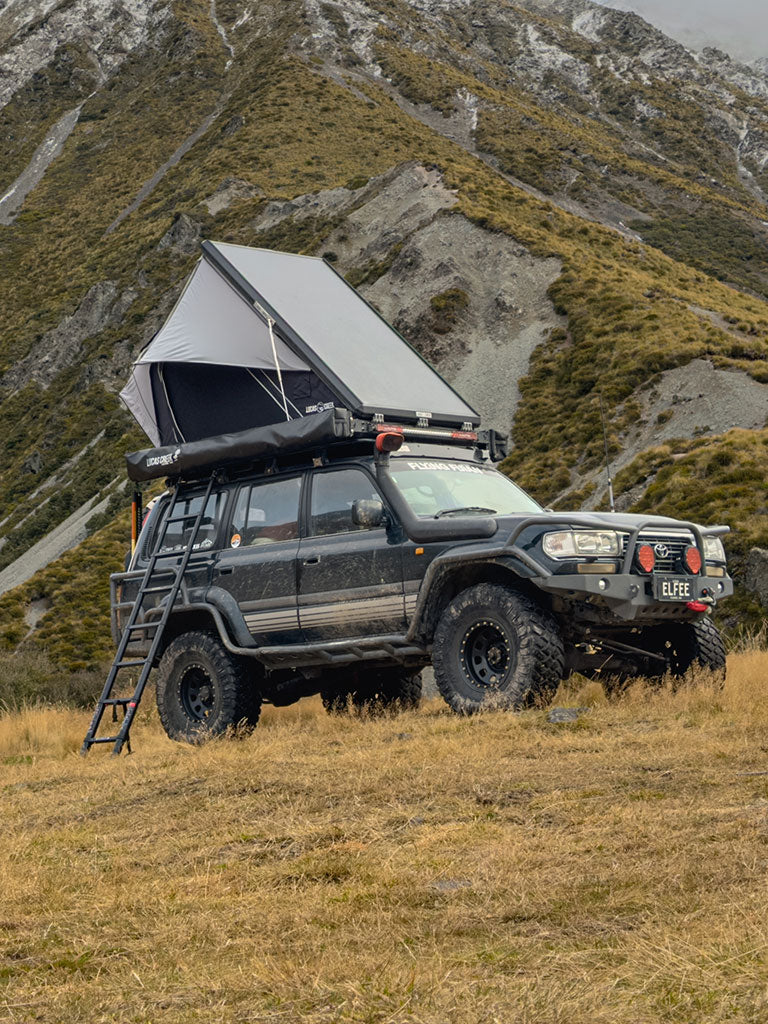

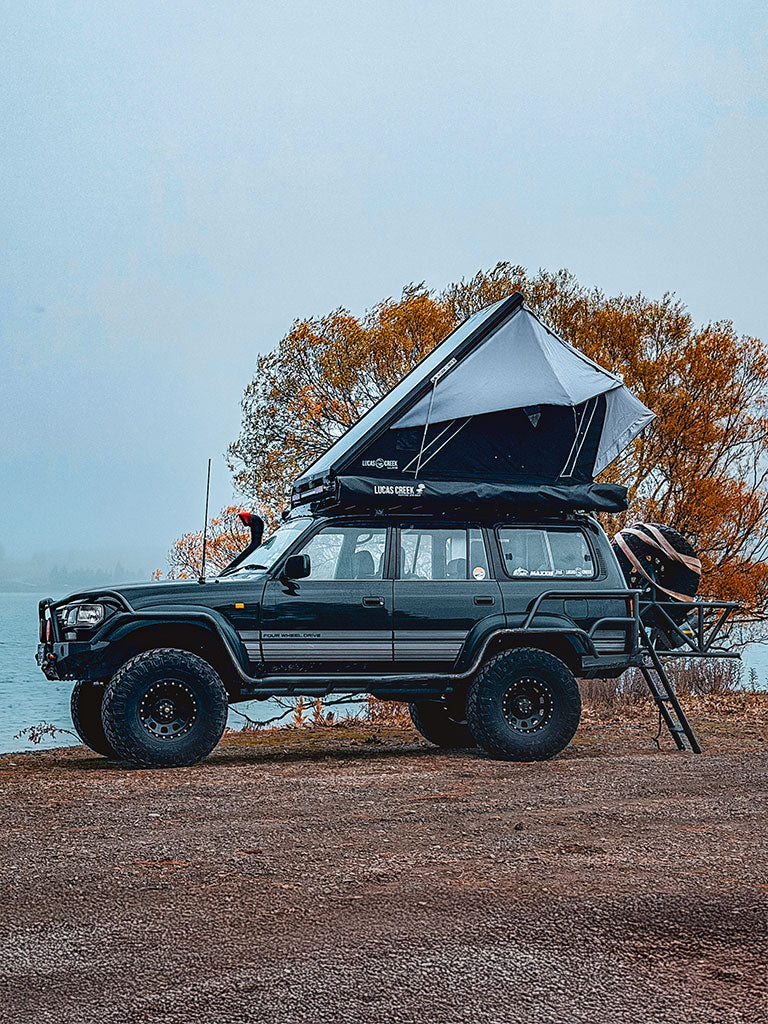

The LUXE is the compact-width model in the Lucas Creek hard-shell range, designed for campers who want the comfort and features of a premium rear-entry rooftop tent without unnecessary width on the vehicle.
Its narrower shell reduces side overhang, making it particularly useful on vehicles with smaller roof spaces or for drivers who regularly travel through tighter tracks where a more compact rooftop setup is an advantage.
The rear-entry, end-opening layout creates a straightforward sleeping space with large side windows for airflow and visibility, while the hard-shell construction keeps setup simple when moving regularly between campsites.
Premium Features in a Narrower Footprint
Although more compact across the vehicle, the LUXE retains the core comfort features of the Lucas Creek hard-shell range.
Inside, a three-layer mattress system combines high-density foam, memory foam and an anti-condensation layer. A three-speed 12V ventilation fan, underfloor ventilation, skylight and heater ducts help manage airflow and comfort across changing seasons.
Integrated 12V power and LED lighting provide charging and illumination inside the tent, while internal storage pockets keep smaller items organised and within reach.
The aluminium shell incorporates a roof T-slot system for compatible accessories such as roof racks and solar mounting equipment. Removable or roll-up side-window awnings also allow the tent to be adapted to different weather conditions without leaving unnecessary fabric exposed in the wind.
For campers using compatible Lucas Creek roof-hatch awnings, the rear-entry layout can be incorporated into a sheltered vehicle and rooftop-tent setup.
The LUXE is best suited to campers who want a premium hard-shell rooftop tent with a narrower vehicle footprint, particularly where roof width, track clearance and overall touring setup matter.
• Industrial coating system and sealers.
• CNC machined anodized aluminium hardware with lockable adjustable seal pressure latches.
• Roof T slot system for racks, solar panels etc. (Racks and solar panel kits sold separately)
• Underfloor breathable vent system.
• 500nm 316 Marine grade stainless steel gas struts.
• Skylight for natural light, stargazing and extra ventilation.
• 12v power switch panel and LED lighting included (upgradable to exterior base Anderson plug)
• One zip drop side windows.
• Roll up or removable side window awnings (allows for faster setup and pack down times when rolled up or removed.
• 12v 3 speed ventilation fan included.
• Heater ducts each side
• Annex compatible. (Optional 3 sided annex purchased separately)
• 3 x internal storage pocket panels.
• 3 layer mattress system -Dual layer laminated foam with 20mm of high rebound memory foam and 40mm of high density foam placed on top of a 10mm anti condensation layer.
• Telescopic ladder 2.3m. Extra wide rungs superior comfort. One click drop. With travel cover (free sand brush)
• 5 year warranty
The LUXE aluminum hard shell rooftop Tent is built to perform in New Zealand’s most rugged conditions, combining strength, comfort, and innovation in our highest-spec tent yet.
The outer aluminum hard shells are constructed from custom honeycomb panels with four internal reinforcement braces for added strength. All shell components are finished with an industrial-grade Dulux® powder coating system, and Sikaflex® sealers are applied to all joints for superior anti-corrosion and UV protection. An automotive-grade weather seal helps keep the elements out, while underfloor vent panels maintain continuous airflow—even when the tent is closed. T-slot channels run the entire perimeter, allowing you to securely mount our Fantail Awnings using the included bracket system.
All hardware is CNC-machined and anodised aluminum, including our own lockable, adjustable seal pressure latches. The tent uses 316 marine-grade gas struts rated at 500N for reliable operation in high winds, Optional gas strut locks are also available for additional security.
A full-length roof T-slot extrusion allows for mounting our optional solar panels and roof racks. Internally, the tent features built-in power and lighting, with a switch panel that includes USB, Type C, and cig sockets. The power cable connects via Anderson plug, and can be adapted to various power sources such as phone banks. The switch panel is positioned near the main entrance for easy access and includes a built-in fabric cover to block light while sleeping. A 12V 3-speed airflow fan is included, with a high-mounted design to push or pull air in and out—helping reduce condensation during colder nights.
Each tent includes 4 anti-condensation packs.
A full 12V and solar power kit is also available, along with compact 270W roof-mounted solar panels designed to save space. These plug-and-play systems provide solar out and 12V power in, with optional base plugs and Anderson wiring kits.
The main tent body is constructed from breathable blackout 300GSM polycotton, with a built-in skylight for natural light, airflow, and stargazing. All windows, doors and the skylight are fitted with insect mesh. The side windows feature a convenient one-zip drop system that opens both mesh and solid fabric in a single motion. A built-in heater duct each side is included—ideal for winter camping or drying out the tent after use.
Inside, there are storage pockets at the rear, front and sides, along with an external shoe pocket. The outer rainfly is made from 600D polyester in a light grey finish to reduce interior heat and includes roll-up or removable window awnings. The tent is fully annex compatible using our optional 3-sided annex, which provides ladder cover and extra shelter. It can also be converted into a large awning with tent poles.
Sleep comfort is a top priority, and the LUXE-X delivers with a triple-layer mattress system: 40mm high-density base foam, topped with 20mm memory foam, and placed over a 10mm anti-condensation mat. The mattress comes with a soft, plush top cover that’s machine washable and finished with a waterproof base and sides.
The telescopic ladder extends to 2.3m and features wide, comfort-focused rungs for barefoot use. It collapses with a simple one-click action for fast, easy pack-down. It also includes a tough waterproof travel cover and our handy sand brush to clean the ladder and your feet before climbing in. A 2.6m ladder is available for taller vehicles.
• Bedding Capacity When Closed: 2 x Pillows, 2x Sleeping Bags or a light blanket.
• Closed Dimensions: 128 W x 20 H x 225 L (cm) (cm)
• Open Dimensions: 128 w x 172.5 H x 282 L (cm)
• Mattress Dimensions: 120 W x 218 L (cm)
• Ladder Fully Extended Length: 2.3m (2.6m ladder also available)
• Rooftop Tent Weight: 85kg
Designed in new zealand
